The bezel pearl of a Rolex Submariner Ref. 5512 had been lost, and a replacement was requested with the aim of preserving the original character of the watch.


Bezel insert pearl fabrication process chart: Step 1 (Details are in the text on the side)

Dimensions are taken from a new old stock example and used as a reference throughout the process, with the aim of approaching the original form as closely as possible.

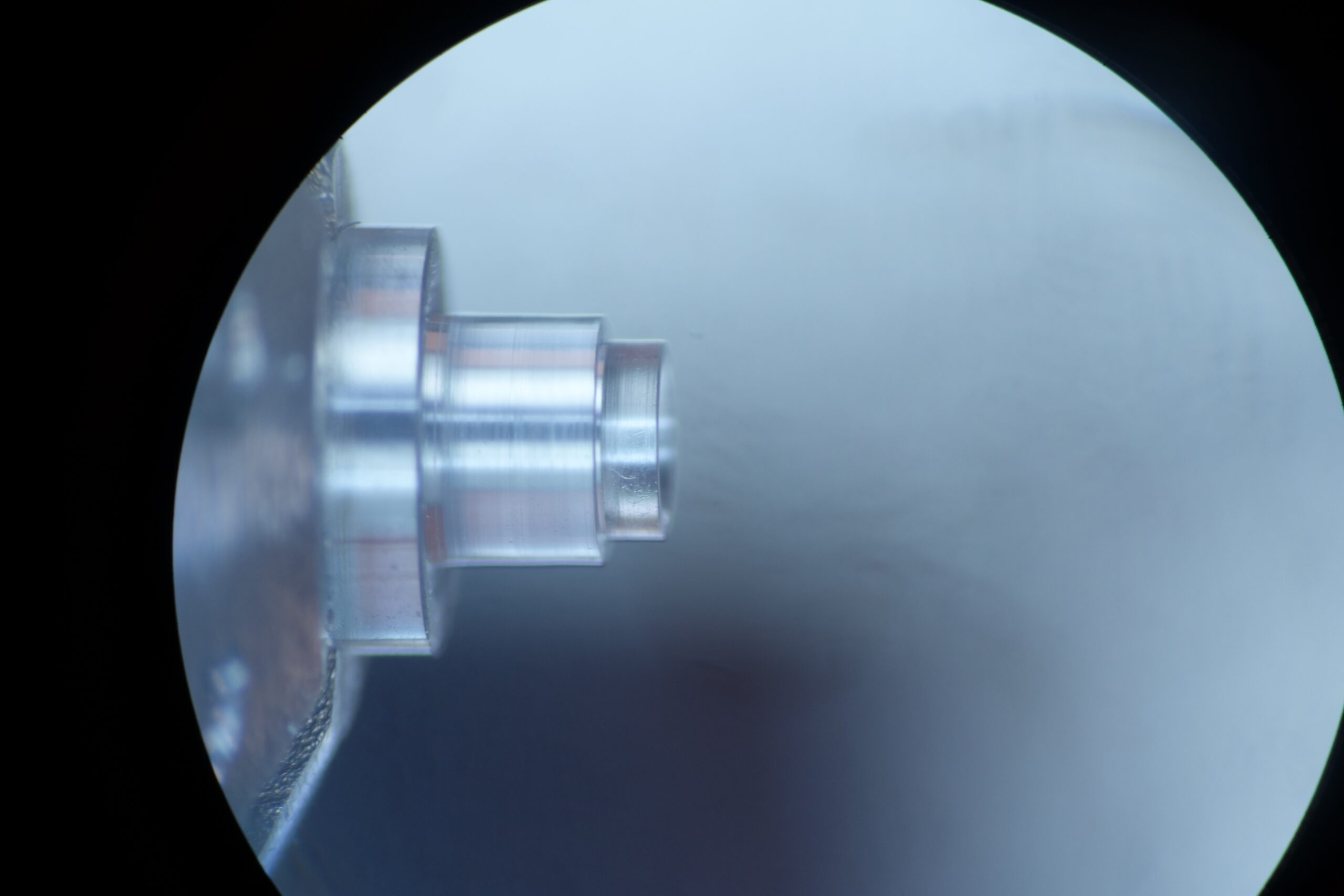

The pearl is fabricated from an acrylic rod.


Bezel insert pearl fabrication process chart: Step 2 (Details are in the text on the side)
Bezel insert pearl fabrication process chart: Step 3 (Details are in the text on the side)

The upper profile is shaped and refined, followed by polishing.

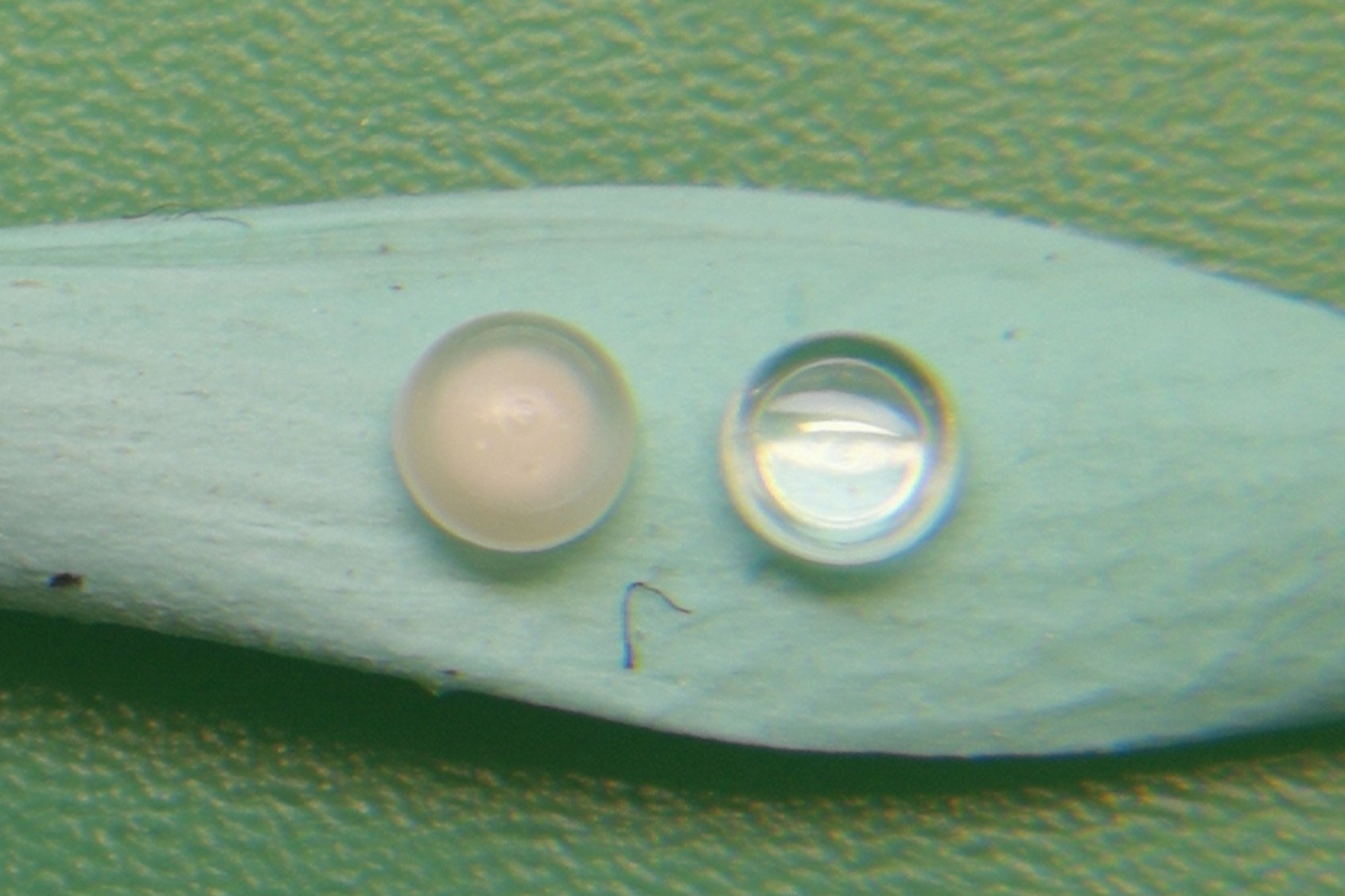

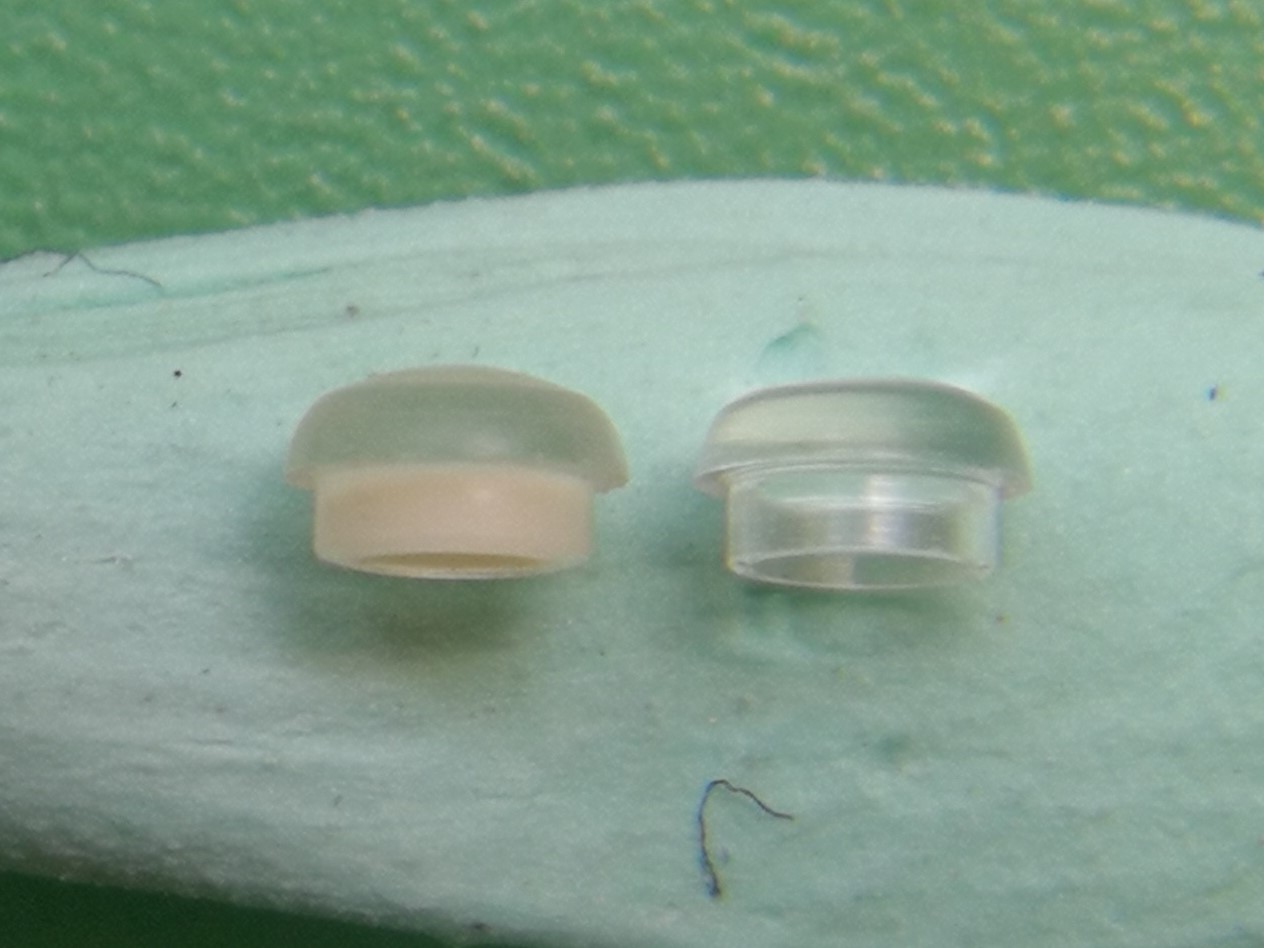

(Left: new old stock example / Right: fabricated pearl)


Bezel insert pearl fabrication process chart: Step 4 (Details are in the text on the side)

A period-correct tritium compound is selected to harmonise with the tone of the dial lume.

This is placed within the pearl and sealed.

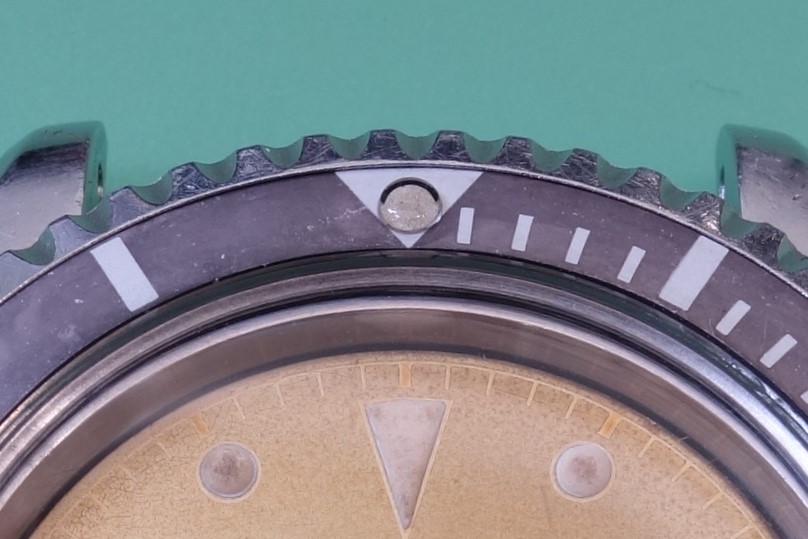

The completed pearl is then fitted to the bezel insert by friction and secured from the reverse with adhesive.

The work is thus completed.
